IUI

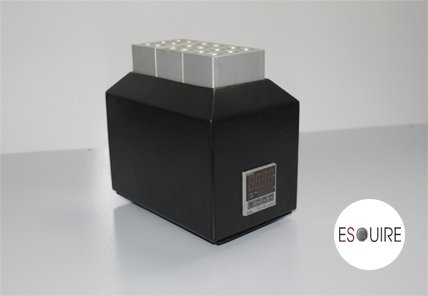

HEATING BLOCK
Made of GI with powder coat finish
Ormon PID controller
Temperature accuracy + 0.2°C
Temperature range ambient to 49.9°C
3 No’s of anodised aluminium blocks
Each blocks can hold 6 No’s of ASP tubes
Optional 30° angle block
Easy to clean block

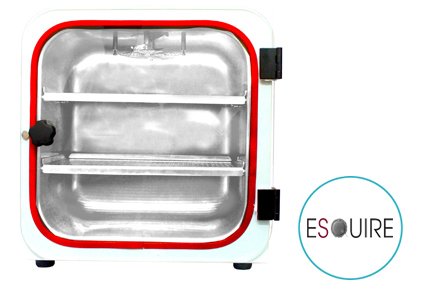

INCUBATOR
Body made of GI with powder coat finish
Chamber made of SS304
Omron PID controller for better accuracy
Two shelves for storage your disposable and semen samples
Temperature range from 49.9°C
Temperature accuracy : + 0.3°C
Visible polycarbonate front door to view disposable and samples
Compact design
Chamber size 420 x 420 x 400mm
REMI CENTRIFUGE
Make : Remi
Model : R8M Plus
Brushless induction Motor
LCD Display of speed & Time
Imbalance detector
Safety Lid lock
8*15ml swing out rotor head

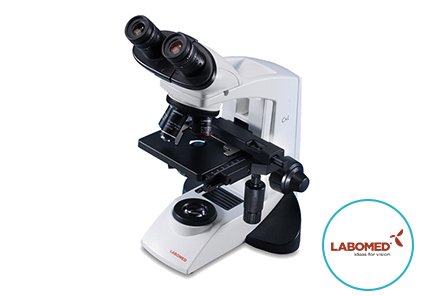

MICROSCOPE
Model : LX 300
LED microscope with battery backup.
Wide field 10x/18mm eyepiece.
Coaxial coarse and fine focus on ball drive system
objectives 4x, 10x, 20x, 40x & 100x (oil)
Sub-stage Abbe condenser NA 1.25 with aspheric lens.
Iris diaphragm with blue filter.

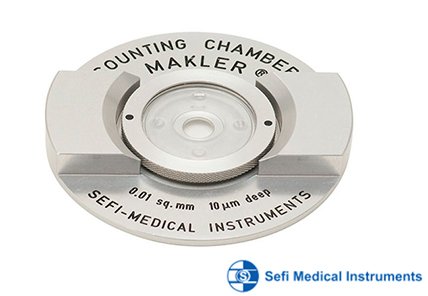

SPERM COUNTING CHAMBER
Model : Makler
Sperm count performed from undiluted specimen
The number of spermatozoa counted in any strip of 10 squares of the grid indicates their concentration in millions/mL
10 x 10 squares of 10micron
Easy to use and washable

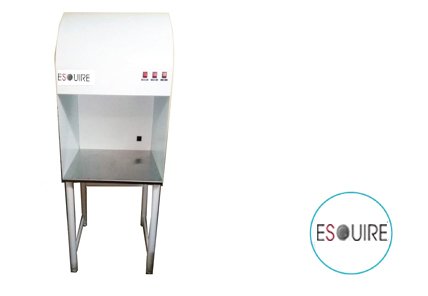

STAR 2 FEET
Made of GI with powder coat finish
Working Table S.S. 304
Working area: 650 L x 600 W x 600 H in mm.
Vertical down flow laminar system.
HEPA filters with rating of 99.99% efficacy 0.3µ particulate.
EBM german blower for continues operation.
Illumination light & germicidal UV Incorporated.
Additional power point inside the working area.

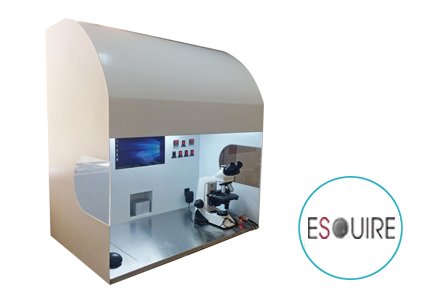

STAR IUI
Star IUI work station is designed for semen analysis,processing & Morphology.
Star IUI Work stations meet there levant standards as ISO 14644-1 or EN12469
Built in Monitor flushed to the back wall of the working area for an easy view & detailed semen analysis,processing & Morphology.
Built in Test Tube Warmer Test tube warmer is mounted on the back wall in such way that it remains in sterile area & doesn't disturbs work area
The heated work area Aluminium Composed Silicone heating Technology Silicone with stands all environmental conditions a cross the globe
A patterned silicone heating system is composed in aluminium for a better accuracy & uniformity
Table heating area: 500 x 400mm
IVF

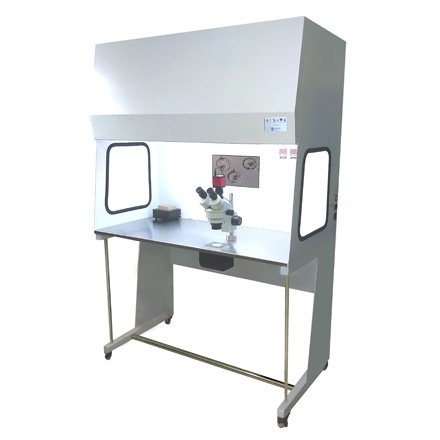

STAR IVF
Star IVF workstation is designed with optimized environment for oocytes & embryo's.
3 different models : 4 feet, 5 feet & 6 feet dual
Heating : All new design of silicone heating coils composed in aluminium for optimum temperature accuracy
3 Heat System : 3 independent heating systems ( stage, table & block )
Control System: Omron German control system with self tuning for over shoot protection Low Noise: 56dBA for uniformity & 24x365 continuous operation
HEPA Filtration: 0.3 micron Classification H-14 with resistance of 130Pa & efficiency of MPPS 99.995%
Monitoring System: flush mounted monitor inside the working area
Tube warmer : miniature test tube warmer, movable to whole working area
Microscope mounting : any make stereo microscope can be mounted on the table
Light Source: in-built LED light source
Glass stage: Better temperature & view ability

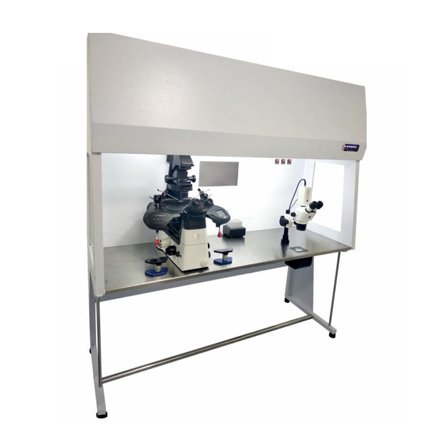

Multi Purpose Workstation
Model: 6 Feet Workstation with ICSI

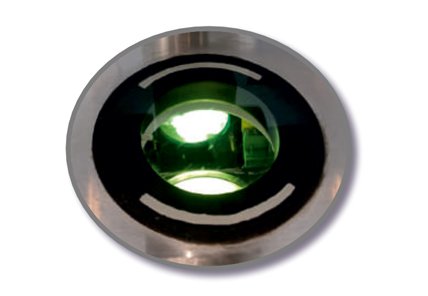

Glass Stage
Circular or Rectangular ITO based glass stage in the light opening
2.5 mm thick glass stage for long durability BK 7 grade glass with transparency accuracy 85%
Glass stage is made by optically clear glass with transparency accuracy is 85%
The optical glass is coated with conductive ITO / FTO based glass stage in the light opening
2.2 / 0.7 mm thick glass stage for long durability with BK 7 grade.
The temperature accuracy is ensured by the reading of tiny temperature sensor in contact with the glass surface.
The temperature accuracy of the glass is ±0.2°C.

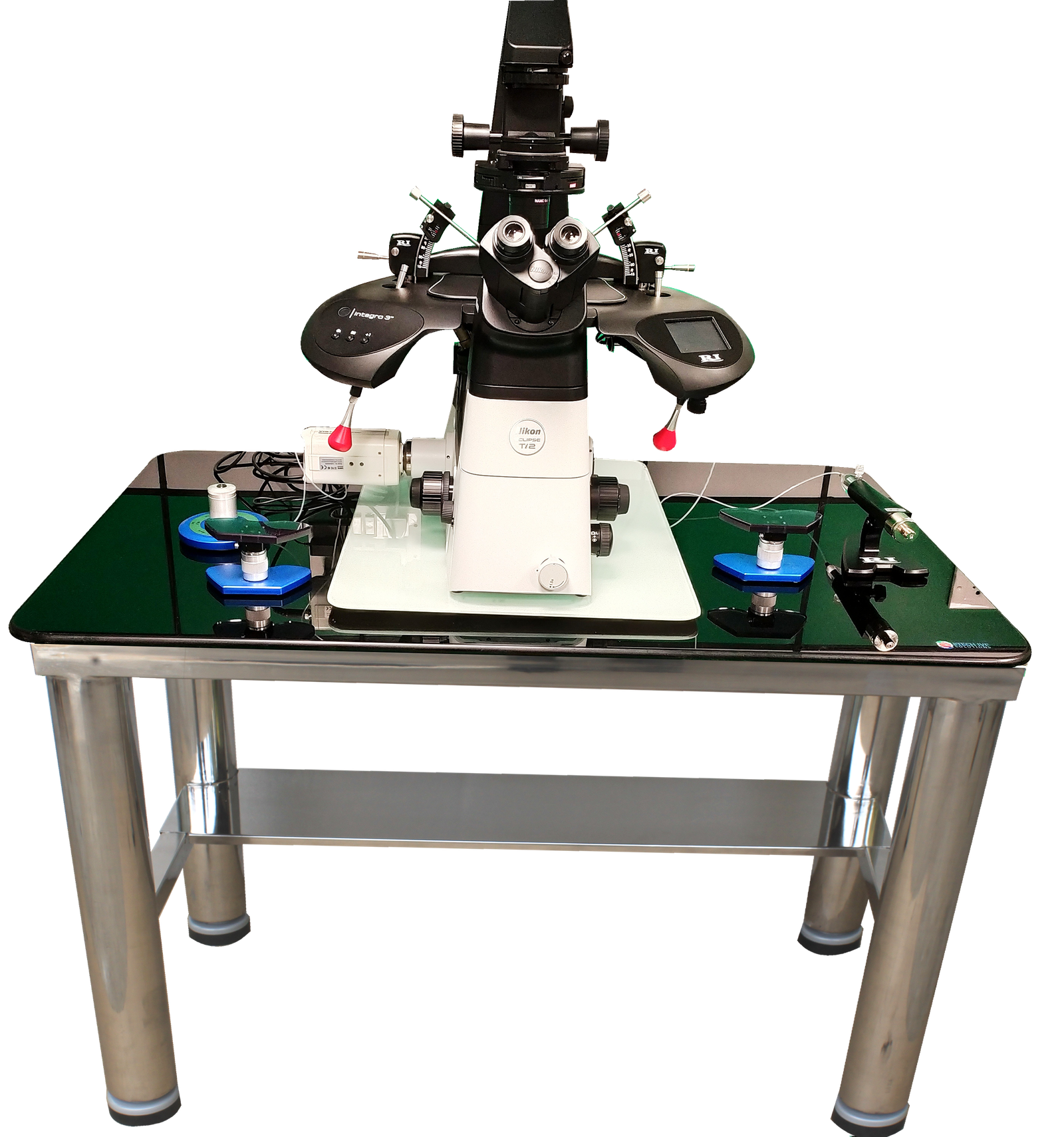

ANTI VIBRATION TABLE
Anti vibration table is fully made of SS with glass top
The anti-vibration handles from light to heavy inverted microscopes
The damping systems use column-friction for optimal results
An equilibrated and isolated platform for the inverted microscope
Working range 15-72kg
Rooy workspace around the micro manipulating systems
space for mini incubator
Mild steel powder coating shelf for accessories
Dimension: 1200 L X 700 W X 705 H in mm

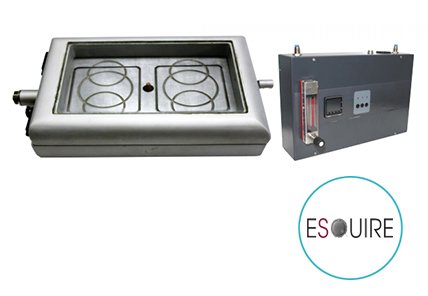

WORKSTATION INCUBATOR
Temperature range ambient to 40°C
Temprature accuracy + 0.2°C
Analog flow meter for adjusting flow rate of pre mixed gas.
Optimal Digital flow meter
Flushing and purge function for fast recovery in the chamber.
Chamber with space for 2 culture dishes.
Alarm for gas flow interruption.
Temperature can be easily controlled .
Dish Plate is removable & autoclavable.
Can be used as warming chamber too.

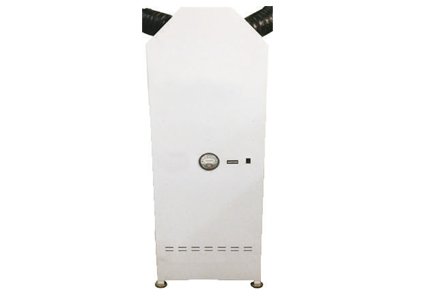

AHU TOWER
4 stages of filtration
Optional UVC Germicidal
Removes VOC & CAC effectively
Noiseless design (less than 56dBA )
Standby / Run Mode
Effectively covers area up to 200 sgft
Continuous Operation runs 24hrs 365 days
70% recirculation 30% fresh air

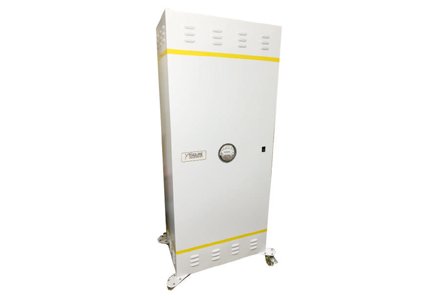

TOWER RECIRCULATION
Improved Air Quality = Higher Fertilization Rates
100% Air recirculation in IVF lab
Carbon filter will remove VOC & CAC free Class 10,000 environment
HEPA filters will remove 0.3 micron particles
pre Filter will remove 10 and 5 micron particles
Blowers( 2 Nos ) with Noise level <52dBA
Standby & running mode
Magnehelic gauge will represent filter life time
Easy moveable with wheels
Covers upto 200 Sq.Ft area
Optional : Germicidal UVC

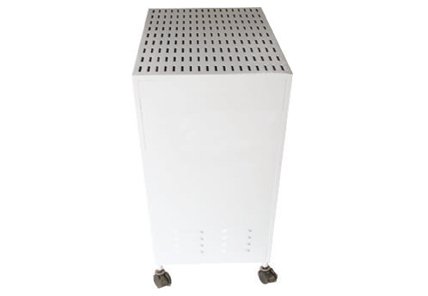

MOBILE AIR
Movable to required area
Activated Carbon impregnated with alumina &KOH removes molecular contaminants
HEPA filtration removes particulate contaminants
4 speed noise level so low in the industry
51dBA noise level so low in the industry
Maximum Air Flow: 300 Cubic Feet/Minute
Air Exchanges/Hours in 150 sq.ft:9.53
Effective Coverage: 150 sq.ft.
100% recirculation

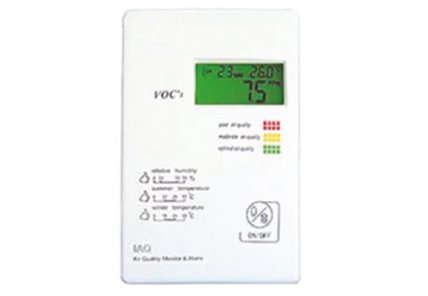

VOC METER
Real time indoor air quality and alarm
0-20ppm Qualitative VOC measurements
Temperature and humidity detection and display
Three-color backlit LCD and Buzzer alarm
High quality technics elegant appearance & CE-approval

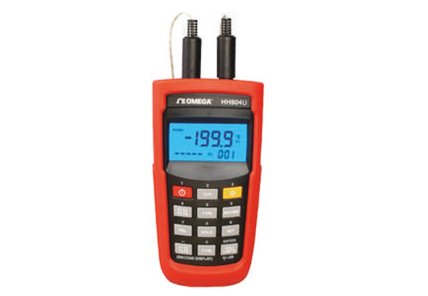

THERMOMETER
Make : Omega
Dual K type micro droplet thermocouple
Thermocouple oset Adjustment
Data Storage for 120 Samples
Protective Rubber cover
Auto-Range : 0.1/1 degree Resolution

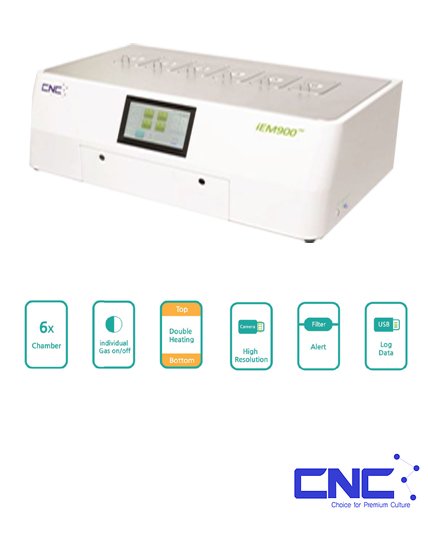

i-EM900
Time-Lapes Embryo Monitoring System
Product : iEM900TM(Time-Lapse)
Dimension (WxDxH) : 780 x 465 x 270 mm
Chambers : 6
Dish Per Chamber : i-well Dish (12 Micro-well)
Display : 7 inches Touch monitor
Temperature range : 20~45°C
Temperature accuracy : 0.1°C
Software :
iEM Viewer
24” 4K Monitor
Gas supply : Premixed gas, Typically CO2 5% / O25% / N290% N2
90%
Log Data : USB backup port
HEPA Filter : Remove 99.995% of all airborne particles down to 0.3µm
VOC Filter : Recommended to use 3 months up to 6 months
Power : 110V / 220V (50 ~60Hz)
Weight : 45kg
Options :
Stacking frame
UPS System

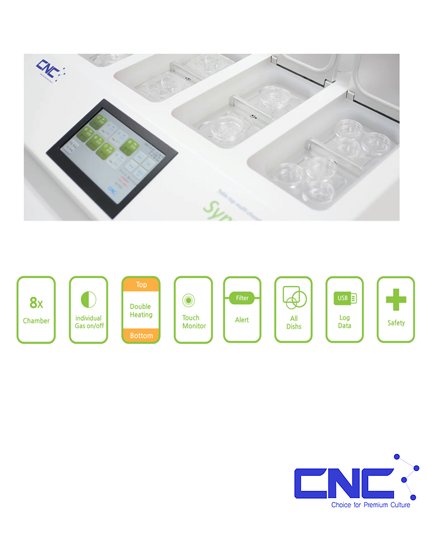

SYNVIVO
Benchtop Multi-chamber Incubator
Tabletop Multi-Chamber Incubator
Excellent efficiency with 8 chambers
Individual gas management ensures minimum gas waste
User-friendly Graphical User Interface
All Log Data will be maintained and ready for download
Comfortable LCD Touch Monitor
Temperature Calibration, Alarm List, VOC Filter Management
Your browser does not support the video tag.

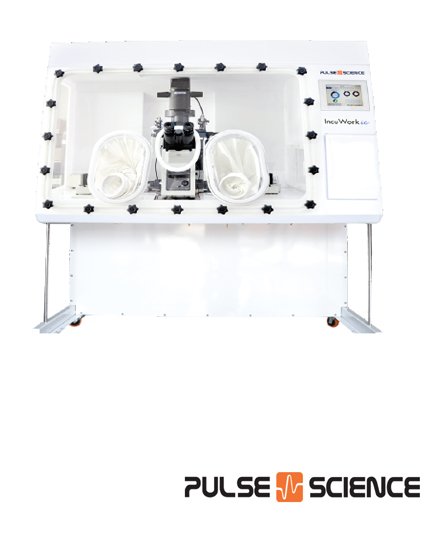

INCUBATOR WORKING CHAMBER
External workstation dimensions
Height (excluding stand): 725 mm
Width (side to side): 1180 mm
Depth: 690 mm
Internal workstation dimensions
Height: 590 mm
Width: 1174 mm
Depth: 570 mm
Hatch box interlock dimension
Height: 220 mm
Width: 220 mm
Depth: 320 mm
Atmosphere Control
Temperature: ambient 5°C- 45°C
O2 Control: 0 - 10%
CO2 Control: 0 - 10%
Alarms
Temperature: visual and audible
Gas level: visual and audible

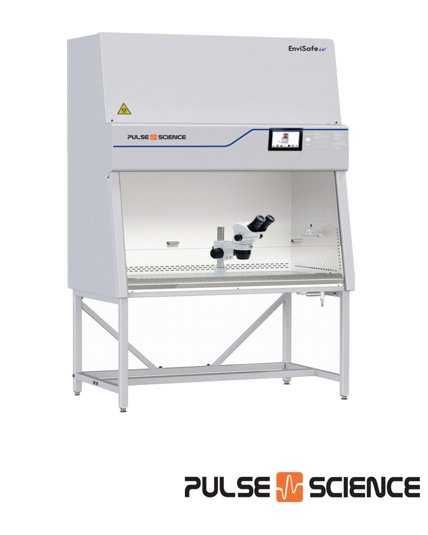

IVF WORKSTATION
Table top is made of stainless steel
integrated with 2-sides heating areas to
give an optimal working condition
High resolution touch-screen display
Mounting assembly for most stereo
microscopes integrated with large
strengthend heated glass
Multiple protection design increases Security level significantly
Innovative surrounded air intake grill
design
ECM brushless DC motor with good energy efficiency
1,000 Lux fluorescent lamp
Ergonomic 10 degree angle

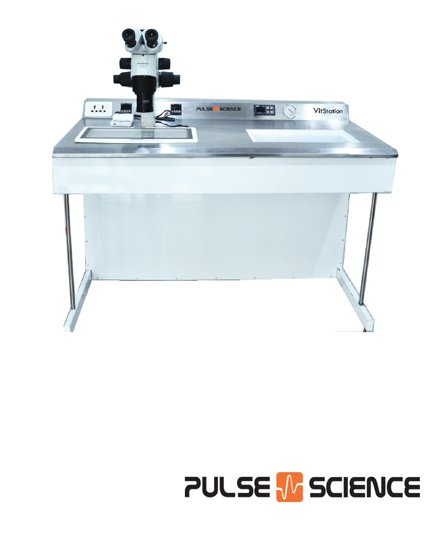

VITRIFICATION SYSTEM
Extreme freeze at -210 oC
Stainless steel table top
Integrated heated surface with 2 heating areas
Combining freezing, heating and observation areas
Specifications Over all:120 cm (W) x 87 cm (H) x 65 cm (D)
Working area:120 cm (W) x 80 cm (H) x 50 cm (D)
Each of heating area dimension:20 cm (W) x 30 cm (H)
Vacuum chamber:36.5 cm (W) x12.6 cm (H) x 17.5 cm (D)
Temperature controller:PID
Power:220 VAC (EMI Filter socket)
Heat plate:Silicone heater

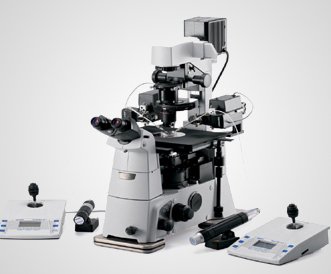

Eppendorf - Nikon with ICSI Micromanipulator
Maximum stability ensures vibration-free work
One-hand operation for capillary and angle settings
Programmable Z-axis limit for preventing capillary breakage
Connection with Eppendorf PiezoXpert and Eppendorf electronic microinjectors
Max. travelling distance: ≥ 20 mm
Weight (complete): 2.15 kg
Stepper motor: X, Y, Z-module
Module (X,Y,Z)
Step size (computational resolution): less than 20 nm
Speed: 0 –10,000 μm/s
Mechanical adjustability: greater than 80 mm
Dimensions: 129 mm × 51 mm × 36 mm
Direction of rotation: -45° – + 90°
Capillary exchange Direction of rotation: forward (swivel out)
Sample replacement Direction of rotation: backward (swivel in)
Operating angle of angle head: 0° – 90°

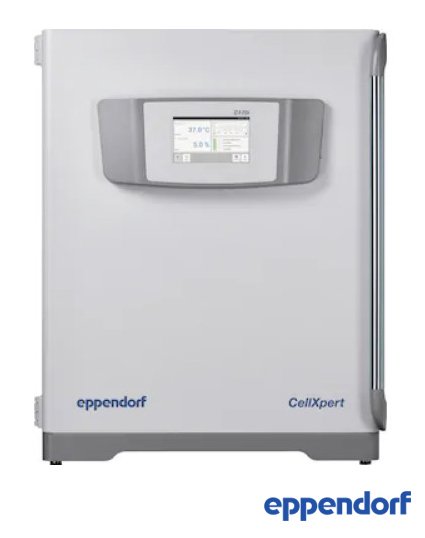

CELLXPERT C170i
Fan-less, six-sided direct heating with seamless deep drawn stainless steel chamber
Unique IR sensor for CO2 offers specific measurement and control of CO2 levels
Auto-calibration feature of sensor automatically ensuring CO2 accuracy
Sealed inner Glass door with 4 door segments for conservation of inner chamber ambience
Communication ports: Ethernet 1x User & 1x Service; with BMS relays 0-5V & 02 Nos. of 25mm
Access ports Stackable up to 2 units high Large volume humidification pan with dedicated
Independent heater HEPA filtration of gas supply inlets to minimize contamination risk
4 position shelving rack with 3 perforated shelves as standard supply
High Temperature Disinfection [HTD]
180°C 2-hour cycle
Convenient and simple operation
CO2 sensor remains in the chamber during HTD
Ensures a clean and disinfected environment for cell culture
Building Management System (BMS) Relay for integration into centralized building alarm system is standard on all models
Advanced control maintains temperature accuracy and uniformity while minimizing costly gas consumption
Dual channel IR NDIR type CO2 sensor with auto-calibration ensures accurate CO2 calibration measurements;
2x 25 mm Access Port for adding instrumentation or probes
High quality door gasket maintains a leak-free seal
In-line filters (0.027µ) for gas supply inlets ensure sterility
Space-saving stackable (x2) design

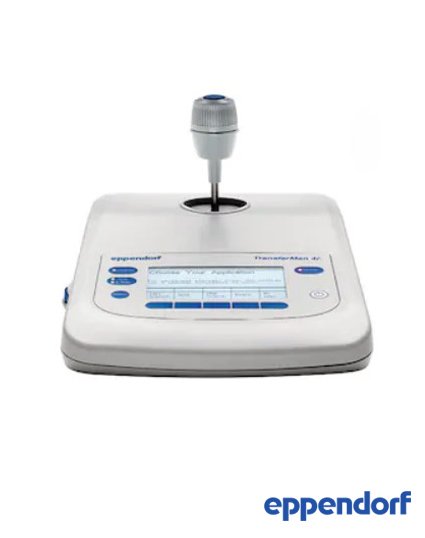

TRANSFERMAN® 4r
Unique DualSpeed™ joystick for precise and instantaneous movement control
Maximum stability ensures vibration-free work
One Joystick for all 3 axes (X, Y, Z) movements and in axial direction (X/Z)
Angle adjustment from 0° to 90°
One-hand operation for capillary and angle settings
Programmable Z-axis limit for preventing capillary breakage
Connection with EppendorfPiezoXpert® and electronic microinjectorsFemtoJet® 4i/4x
Can be adapted to all conventional microscopes
PC interface for remote control
